Precision Potentiometers

Aerosystems Custom Precision Potentiometers with precision ball bearings and servo flange are suitable for applications where a very long life with very high linearity and precisely mountable sensor is important.

The Precision Potentiometers of Aerosystems Aerospace Series are designed for high demands on accuracy and reliability. They have outstanding linearity and excellent life expectancy. The sensor is available in a high-resistance version for power-saving requirements. Our potentiometers are equipped with a servo flange for precise mounting. In closed loop-controlled systems, conductive plastic potentiometers can be used particularly advantageously. As passive components they do not cause any dead times due to signal propagation and the signal is infinitely available.

Very long life, Very precise sensor, Servo flange for precise mounting, 2 Precision ball bearings, Robust metal housing, Power saving in applications. Options: Rear shaft, Center tap, Front shaft adjustment, Tandem versions. We offer many Customizations on request: Multi ganged potentiometers, sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore we can mount gear wheels or attach cable assemblies with or without connectors.

AEROYSTEMS turn potentiometers are fully contiuous rotation potentiometers without stopper and are high reliable in offering an excellent quality as well as a prolonged rotating life. There are 2 kinds of resistive elements available in this series: Wirewound and Conductive Plastic elements.

Wirewound and Conductive Plastic elements are respectively contained in an aluminium housing case processed by electrolytic corrosion-proof plating in Silver Color (Wirewound) and Black Color (Conductive Plastic). They are light in weight and small in size as well as of rigid contructions. Selection of any desired item is possible among a variety of standard models, of wich diameters are variable between 12mm and 50mm.

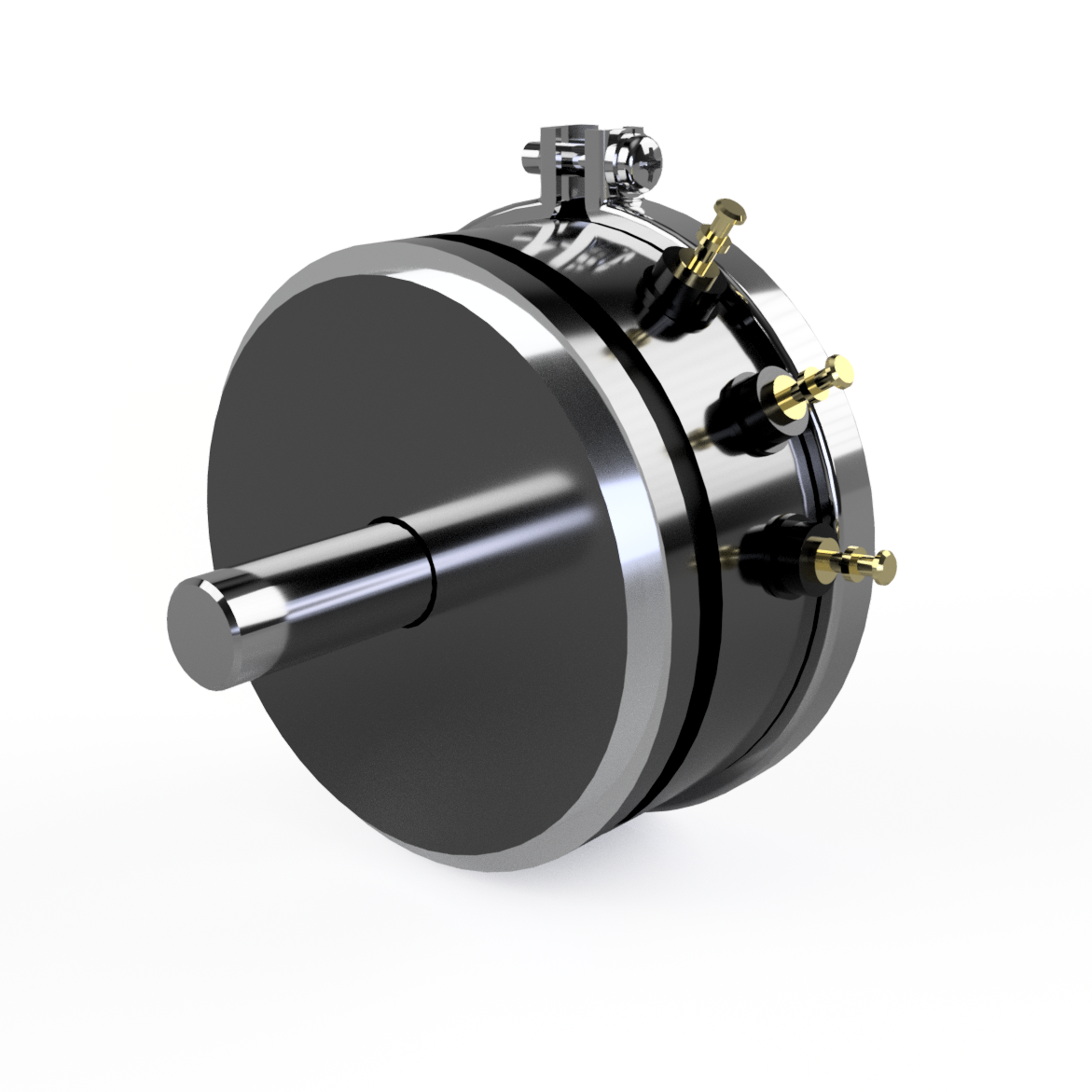

High-resolution Precision Potentiometers with servo flange, excellent linearity and lifetime and high resistance value
Sensor technology: Conductive Plastic Potentiometer
Standard Resistance Value availability: 1k, 2k, 5k, 10k (Ω)
Special Practical Resistance Values availability: 500, 20k, 50k, 100k, 200k (Ω)
Independent Linearity Tolerance:Standard Class ±0.5%, Precision Class ±0.25%, Super precision Class ±0.1%
Effective electrical angle of rotation: max. 340° (or custom)
Functions / Features: Without mech. stop, Opt. rear shaft, Opt. multiganged/ tandem, Metal housing
Resolution: Nearly infinite
Output signal: Analog
Mounting: Servo flange
Shaft diameter: 6,00 mm (or custom)
Housing diameter: between 12mm and 50mm.
Electrical connection: Radial, Solder contacts
Protection class: IP40.

Custom Special Specifications Available:

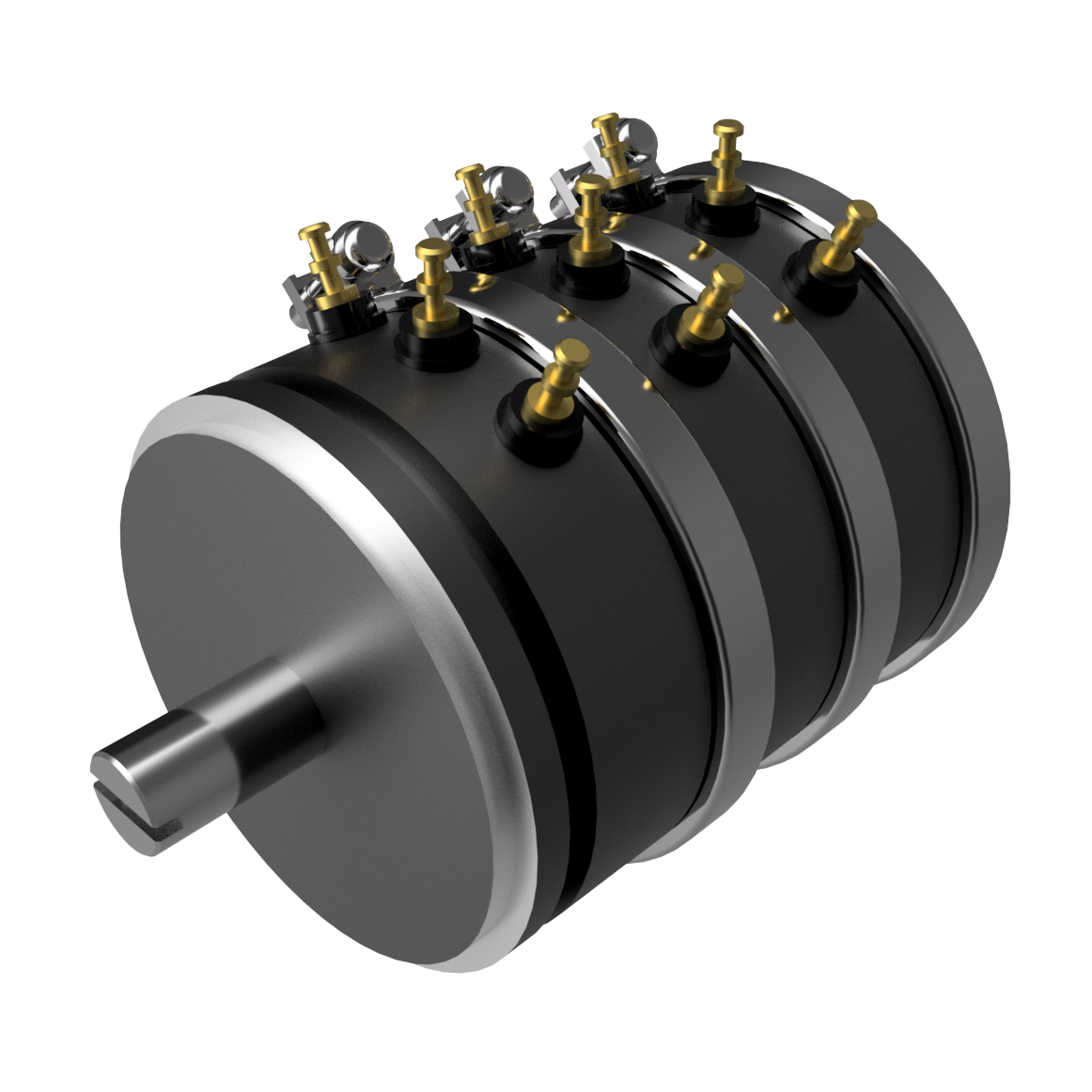

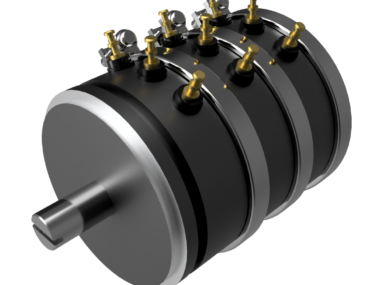

Extra taps (available up to 3 taps), multi-ganged (available up to 7 gangs, housing length is extended by 12mm per 1 gang), shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), with stopper (rotating angle becomes 320º and stopper strength is 0.9N∙m [9kgf∙cm]), special electrical travel, shaft dia. (ø6.35mm) with inch dimensions, special machining on the shaft.

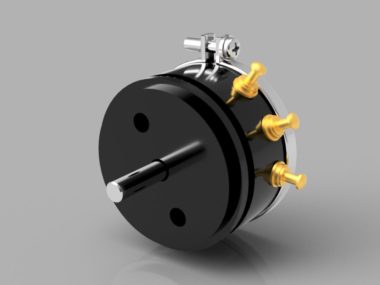

PN 8410000 – CUSTOM Precision Single Turn Potentiometer 5K

Type: Rotary 1 gang
Housing Material: Anodized Aluminium
Bearings: 2 x precision ball bearings
Resistance Value: 5K (Standard)
Total resistance tolerance: ±10% (K) Standard Class
Travel: 340º
Electrical Angle: 360° (Endless)
Shaft Diameter: Stainless Steel 3,00mm
Operating Temperature: -55°C to +125°C
Weight (Mass) 30g Max

Custom Servomount type precision potentiometer with outer diameter of 30 mm and with a multi-finger contact to make a good contact stability and excellent high speed tracking ability. Robust metal housing. Also available 1, 2, 10, 20, 50, 100KOhm. Custom shaft 3.175mm diameter available.

For higher quantities or on-going demand, additional options are available as described below on request.

For Example: Multi ganged potentiometers (max. 5), with mech. end stop 320° @ 30 Ncm, special electrical and mechanical
angles of rotation, and special resistance and linearity tolerances.
Option rear shaft: Standard Ø3,00 x 10 mm
