Aerosystems Air Outlets can cover a wide range of needs and requirements. Optimized manufacturing already offers a great variety in materials, dimensions and finish. Designed for airplane and helicopters interiors to match customers design requirements and finish needs. Aerosystems air distribution eye-ball Air Outlets and Air Vents can be retrofitted or installed in new cockpit or passenger cabins and can be provided with Led illumination. Aerosystems Air Outlets are quieter than the industry average and are fool-proof to install.
Our Air Outles can be manufactured in different sizes and versions, for many applications as:

  • The control of large volumes of airflow at low channel pressures;
  • Used for passenger comfort in general aviation;
  • Used for crew areas in all types of aviation (commuter, commercial, general, military aircraft, helicopters);
  • Designed for unique situations that require greater spherical adjustment of the air direction (cockpit, crew sleeping and galley areas);
  • Easy installation and operation, No air leakage or noise;
  • Custom colors and finishing, Gold plating, Satin or Polished finish;
  • Various cap, hose port sizes available;
  • Disc Type or Poppet Style, Aluminium or Thermoplastic,  free of condensation;
  • Laser engraving markings or custom logos;
  • High Power Leds options and custom reflectors;
  • Color temperature options with clear or diffused lens options;
  • Diamond Knurled Design for easy grip;
  • Custom Solutions.

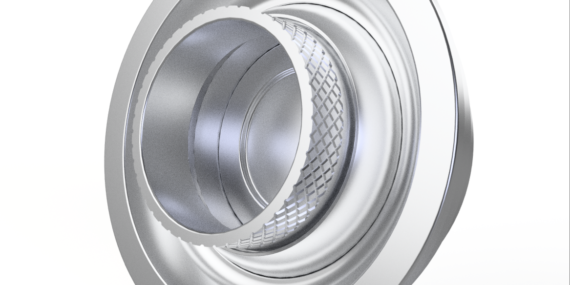

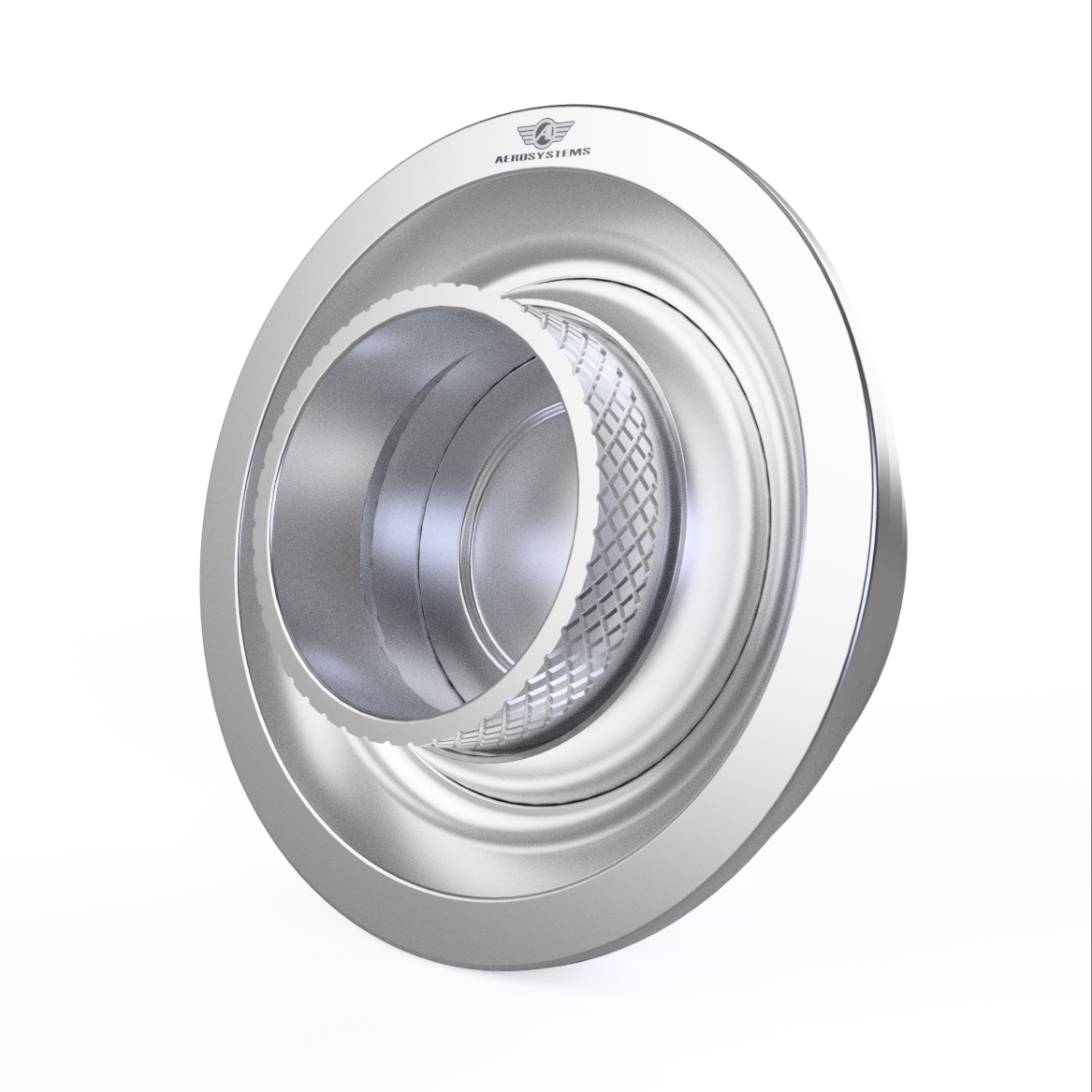

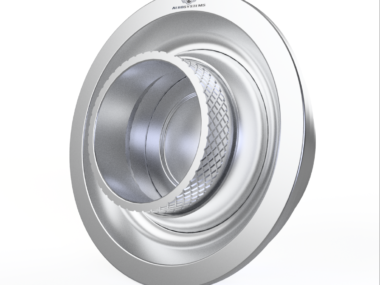

AIR OUTLET D30

PN 75-109-01 AIR OUTLET D30 – ALUMINIUM ANODIZED CLEAR GREY, ANTICORODAL 6060 Anodized Light Grey MIL-A-8625

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 61 mm Hole, Panel Mounting Thickness 1 to 5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

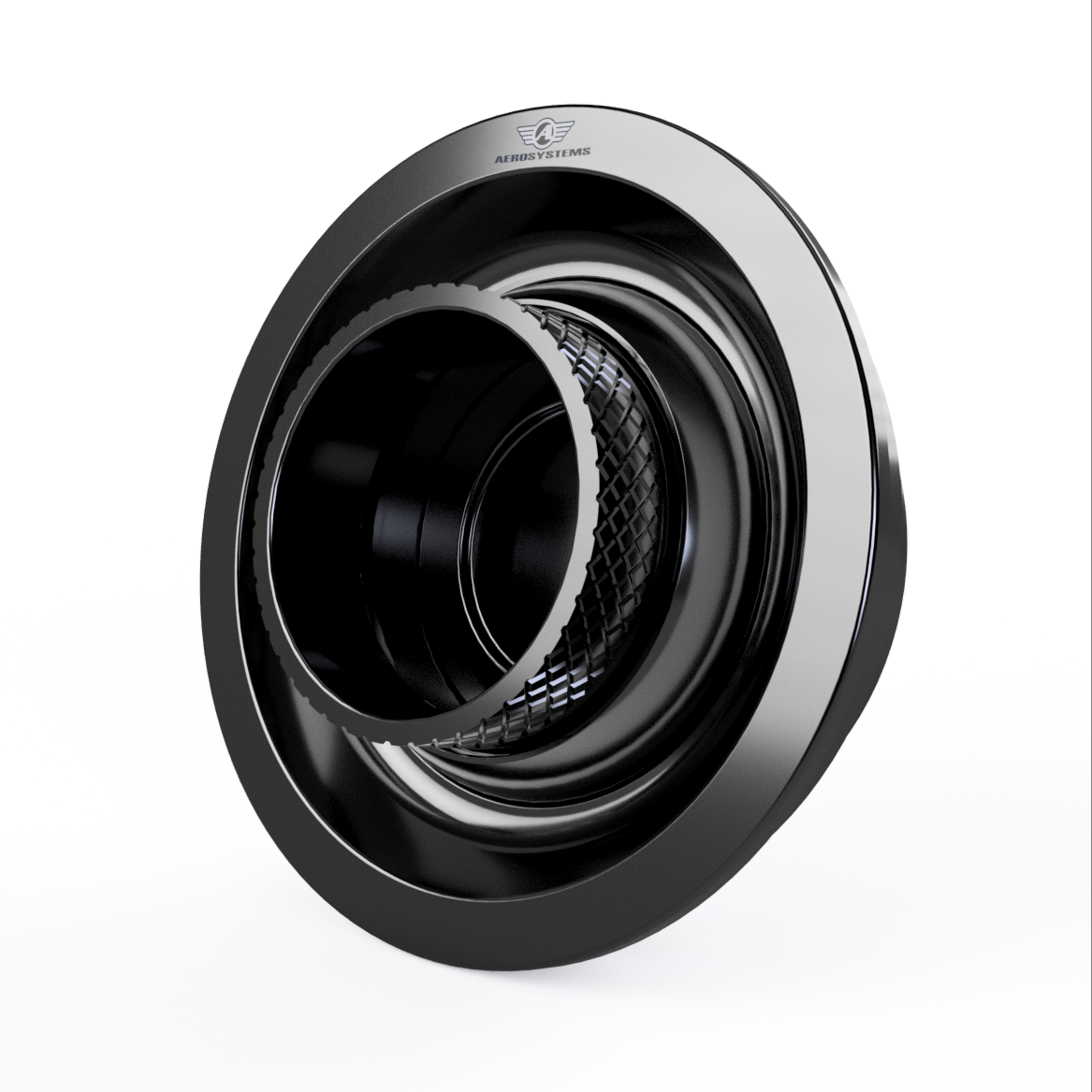

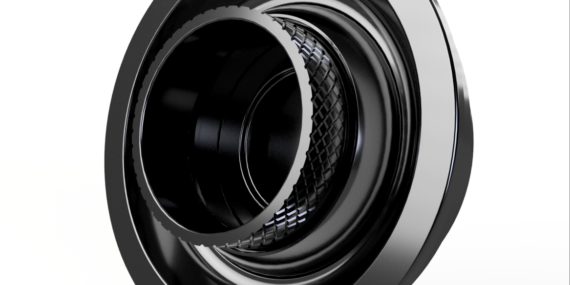

AIR OUTLET D30

PN-75-109-02 AIR OUTLET D30 – ALUMINIUM ANODIZED BLACK, ANTICORODAL 6060 Anodized Black MIL-A-8625

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 61 mm Hole, Panel Mounting Thickness 1 to 5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

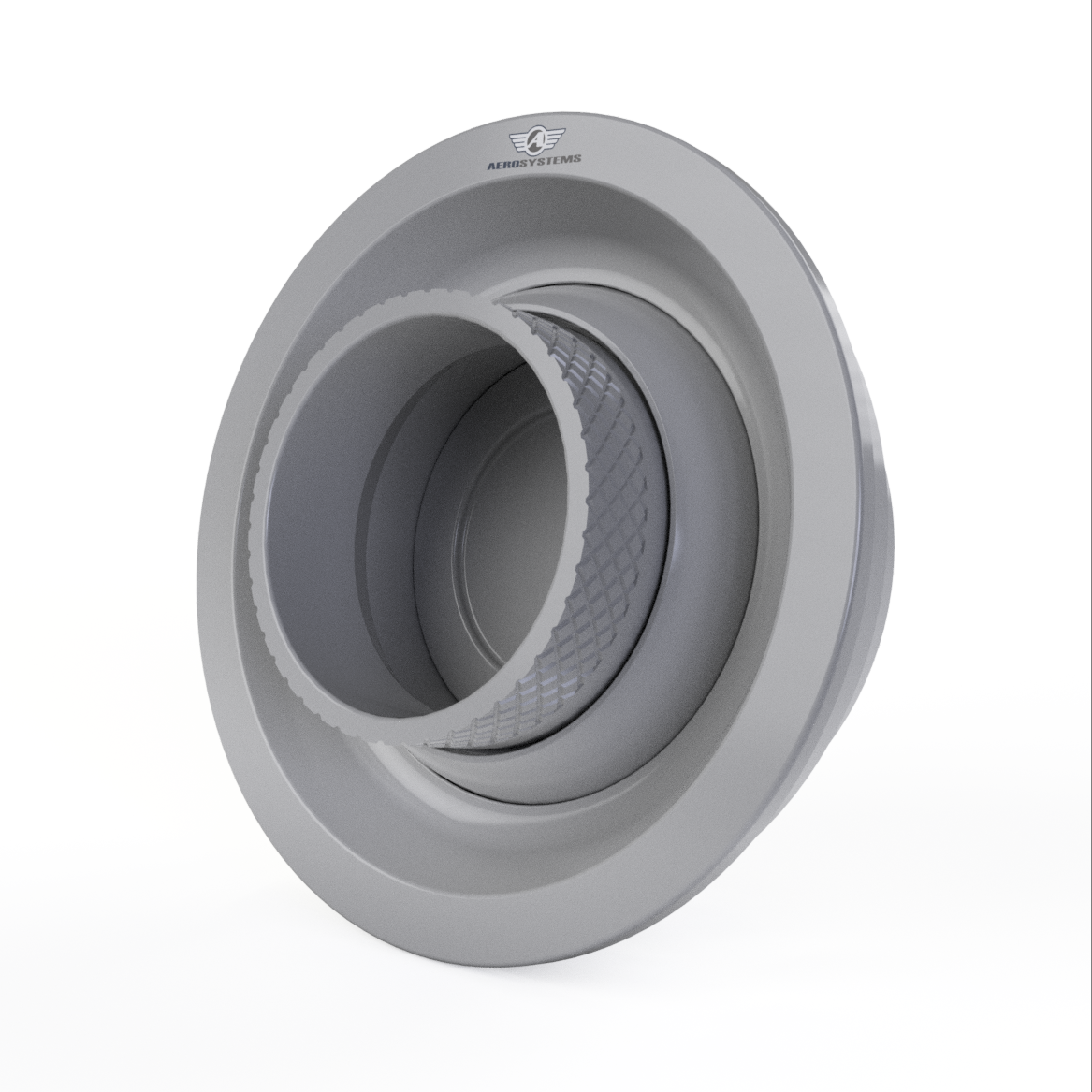

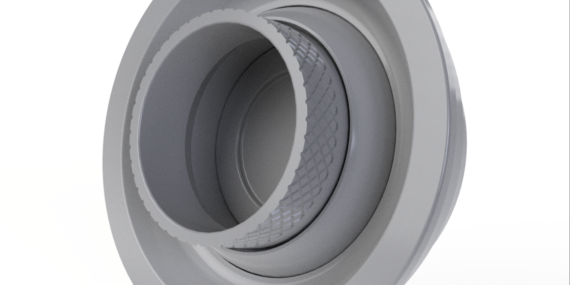

AIR OUTLET D30

PN-75-109-03 AIR OUTLET D30 – CNC Machined High Performance Thermoplastic RADEL® Grey

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 61 mm Hole, Panel Mounting Thickness 1 to 5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

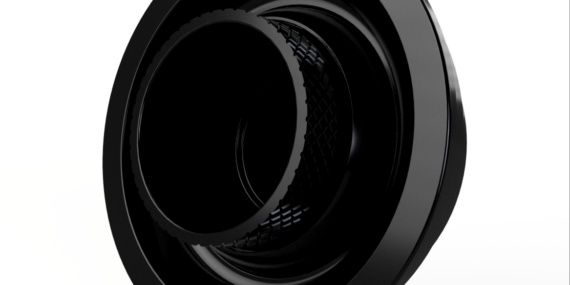

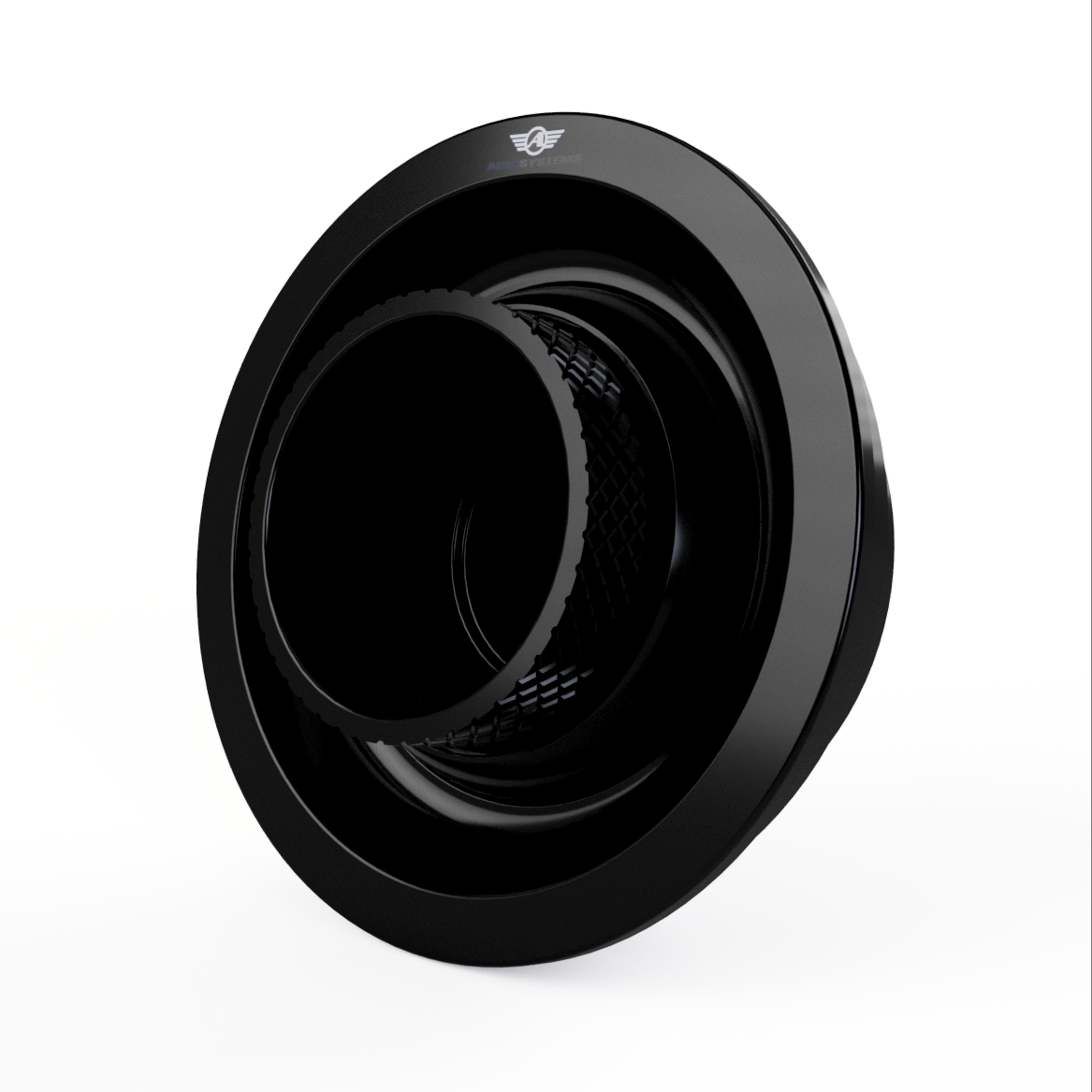

AIR OUTLET D30

PN-75-109-04 AIR OUTLET D30 – CNC Machined High Performance Thermoplastic RADEL® Black

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 61 mm Hole, Panel Mounting Thickness 1 to 5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

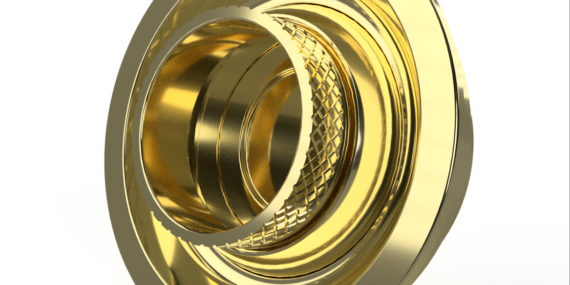

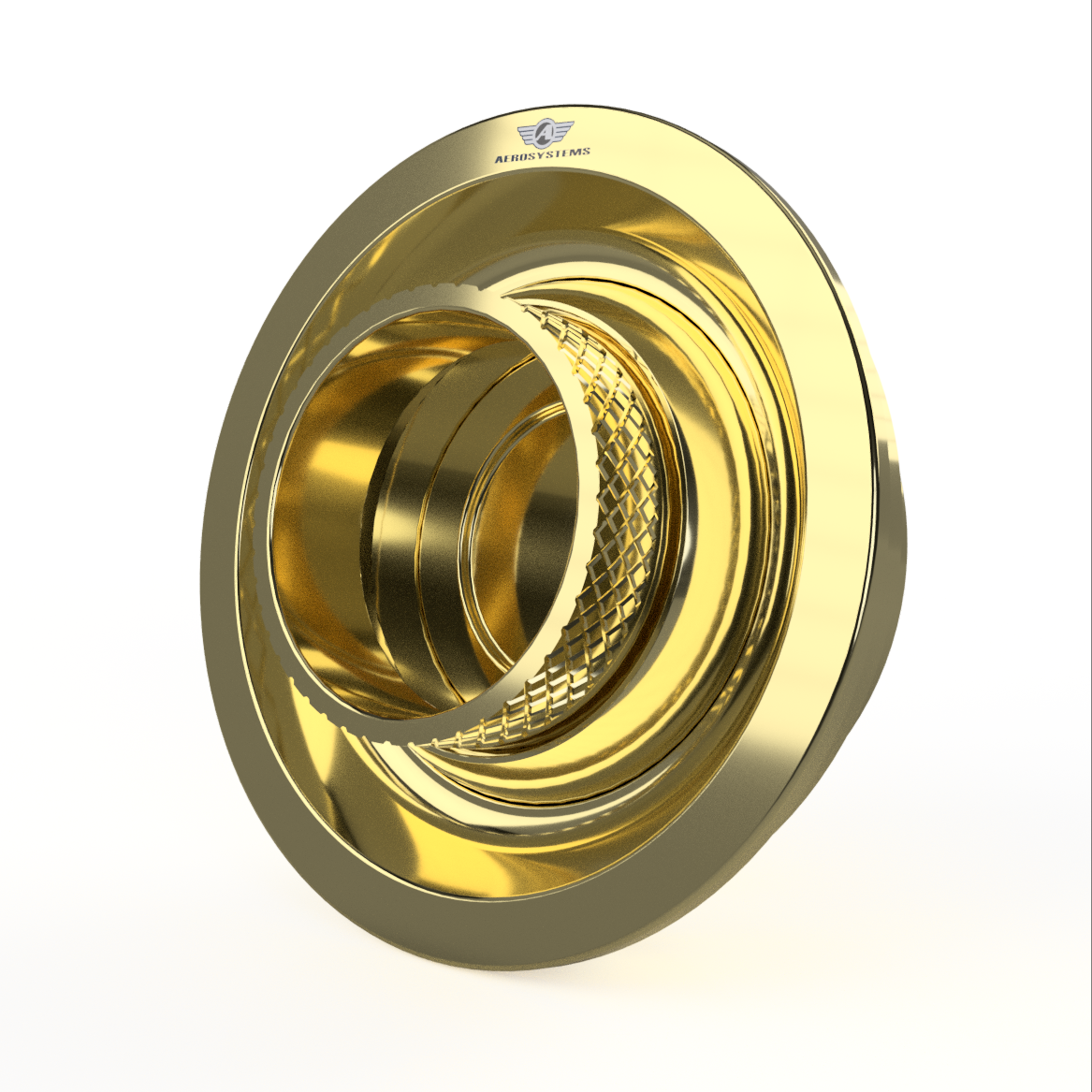

AIR OUTLET D30

PN-75-109-05 AIR OUTLET D30 – CNC Machined Aluminium ANTICORODAL 6060 Gold Plated Polished

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 61 mm Hole, Panel Mounting Thickness 1 to 5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

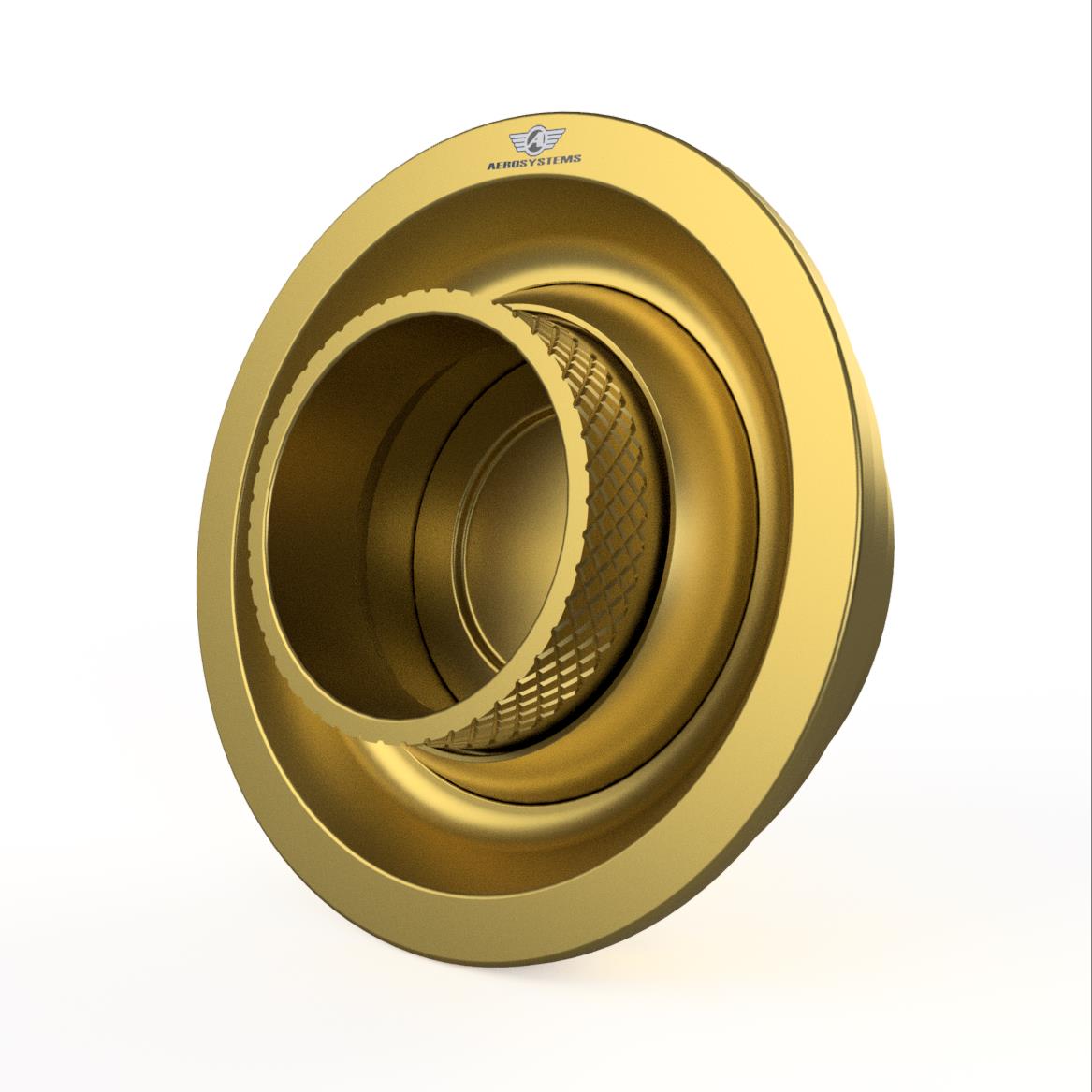

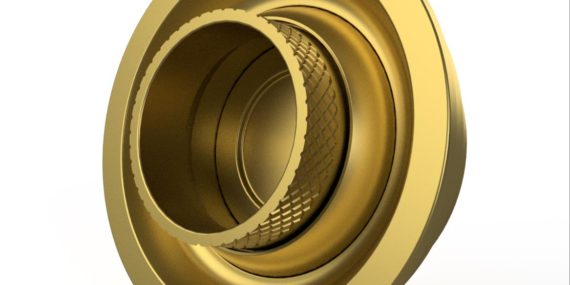

AIR OUTLET D30

PN-75-109-06 AIR OUTLET D30 – CNC Machined Aluminium ANTICORODAL 6060 Gold Plated Satin

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 61 mm Hole, Panel Mounting Thickness 1 to 5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

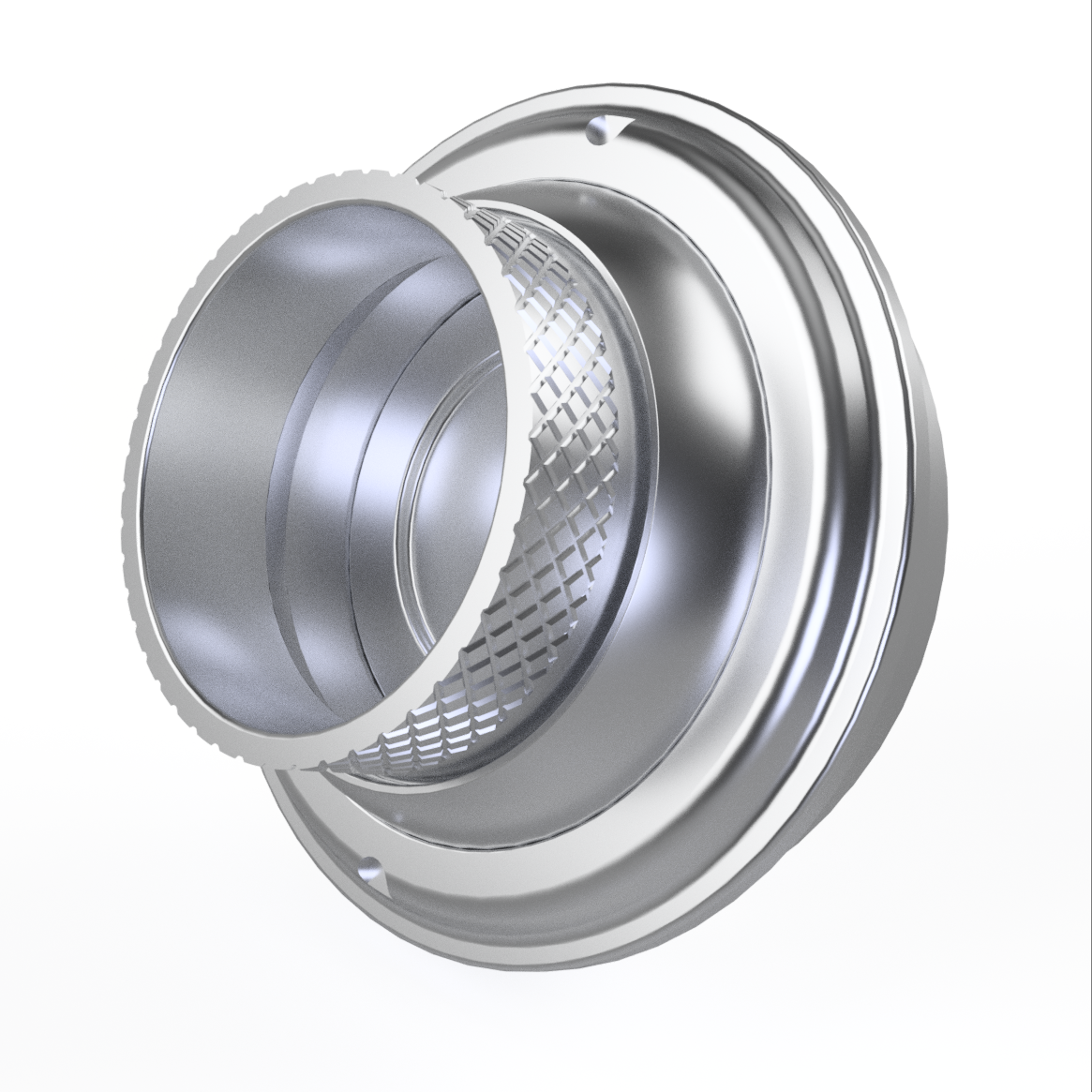

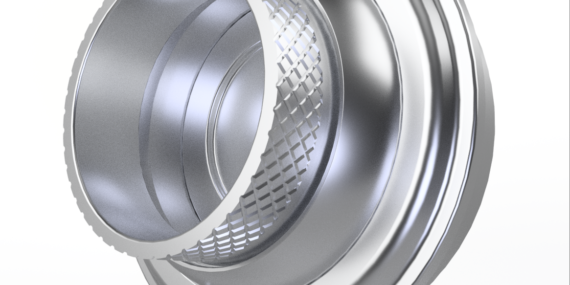

AIR OUTLET

PN 75-119-01 AIR OUTLET – ALUMINIUM ANTICORODAL 6060 Anodized Light Grey MIL-A-8625

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 51 mm Hole, Panel Mounting Thickness 1 to 2,5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

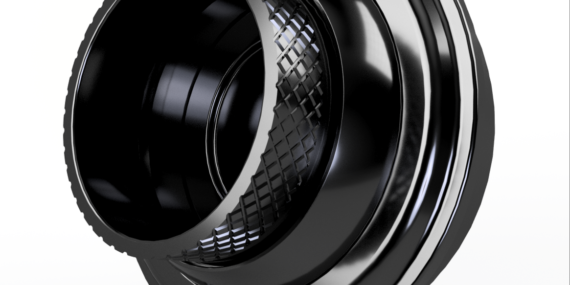

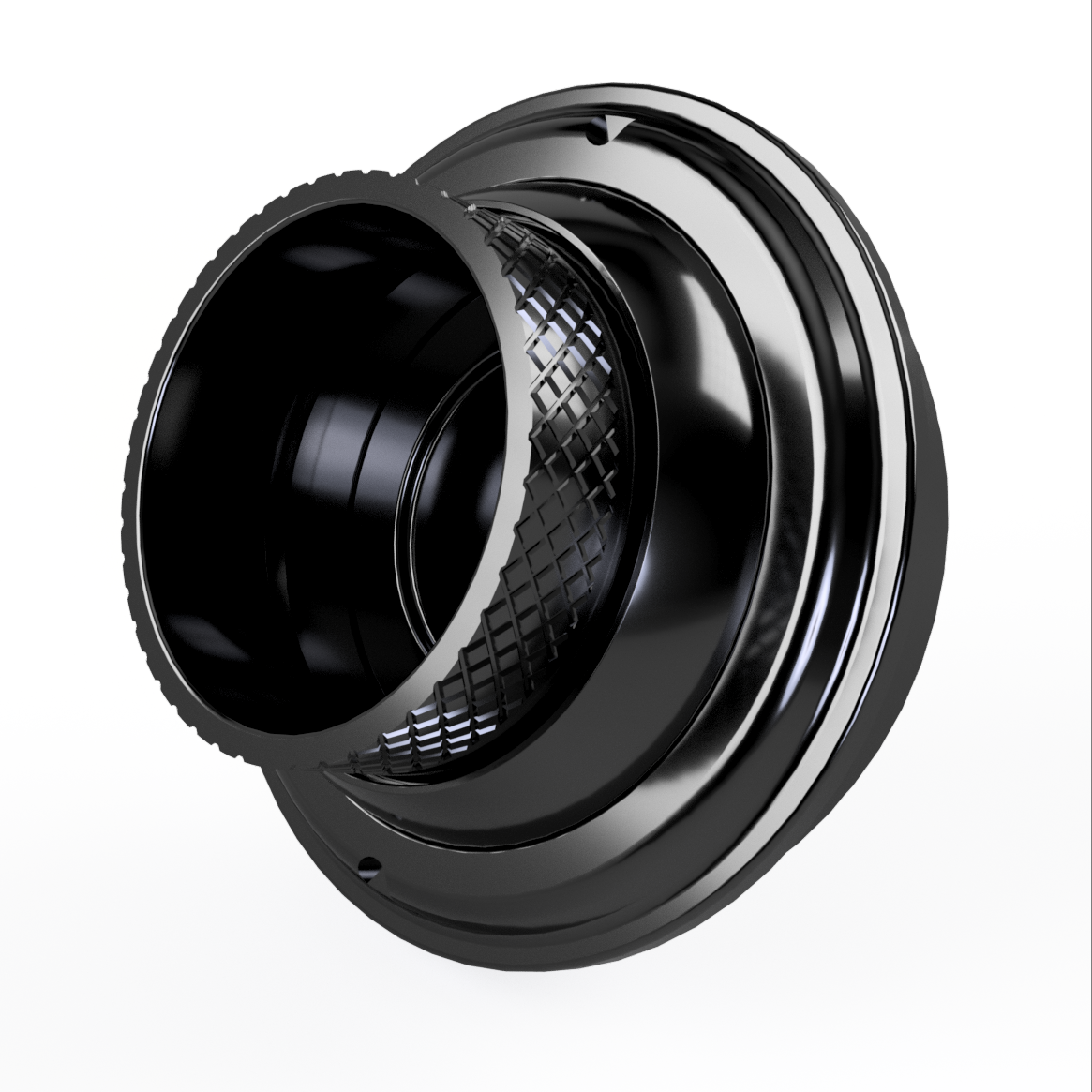

AIR OUTLET

PN 75-119-02 AIR OUTLET – ALUMINIUM ANTICORODAL 6060 Anodized Black MIL-A-8625

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 51 mm Hole, Panel Mounting Thickness 1 to 2,5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

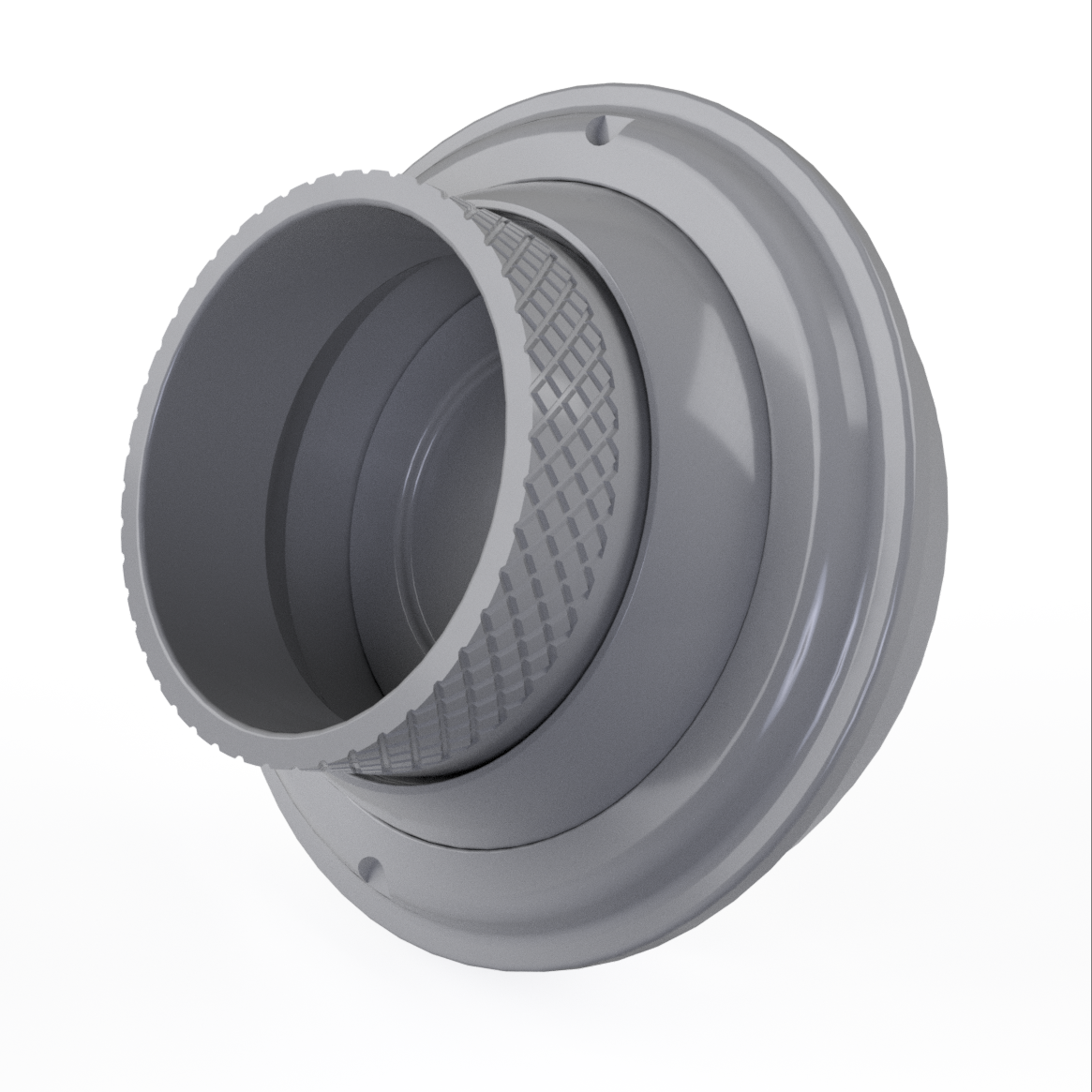

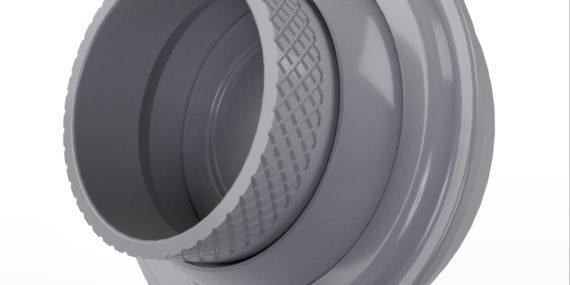

AIR OUTLET

PN 75-119-03 AIR OUTLET – CNC MAchined High Performance Thermoplastic RADEL® Grey

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 51 mm Hole, Panel Mounting Thickness 1 to 2,5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

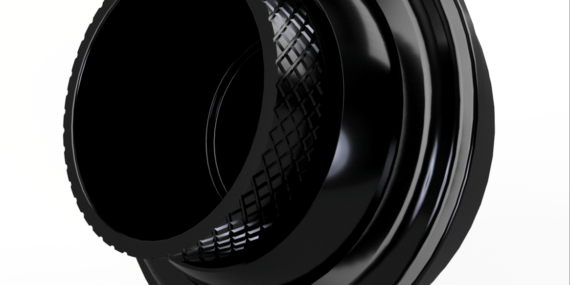

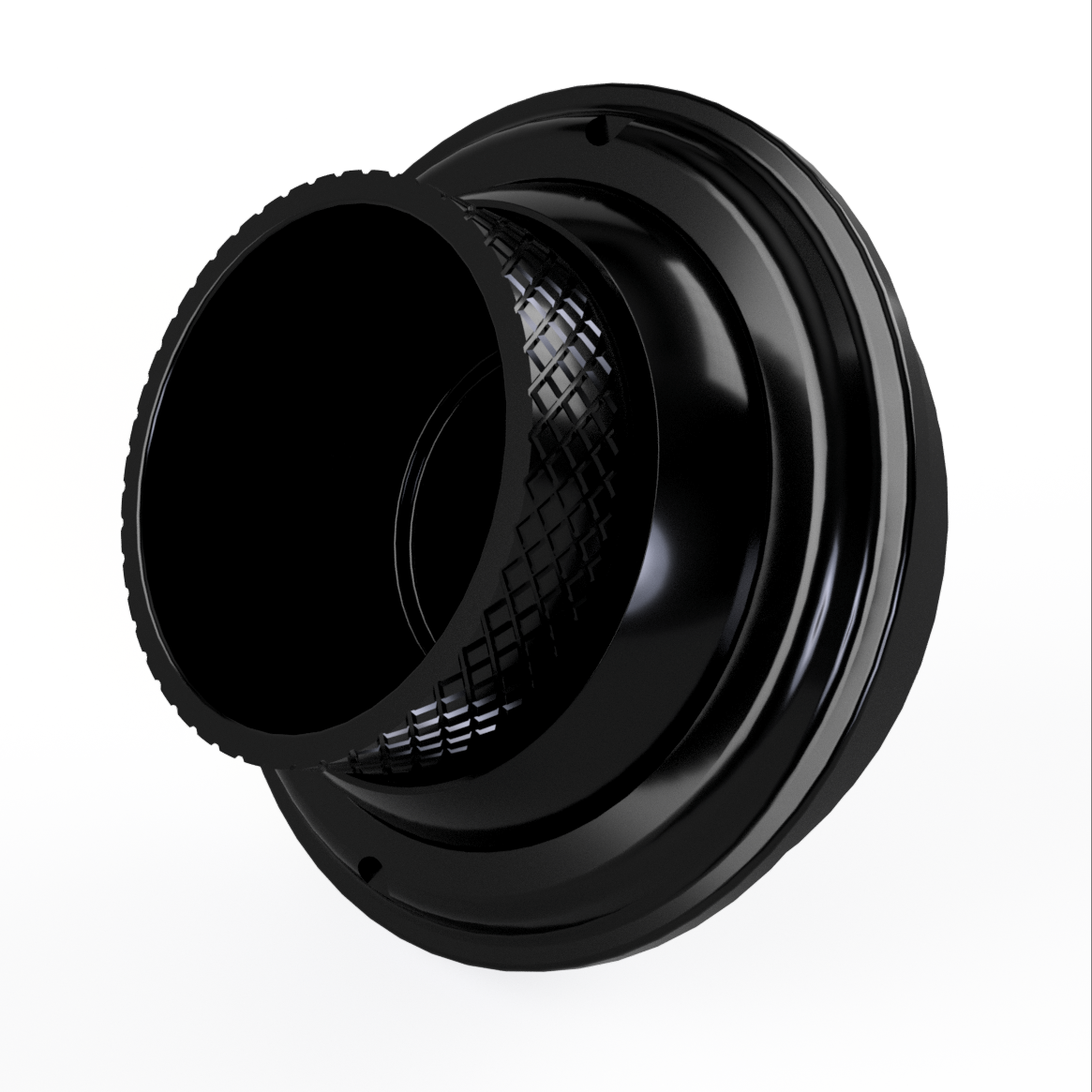

AIR OUTLET

PN 75-119-04 AIR OUTLET – CNC MAchined High Performance Thermoplastic RADEL® Black

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 51 mm Hole, Panel Mounting Thickness 1 to 2,5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

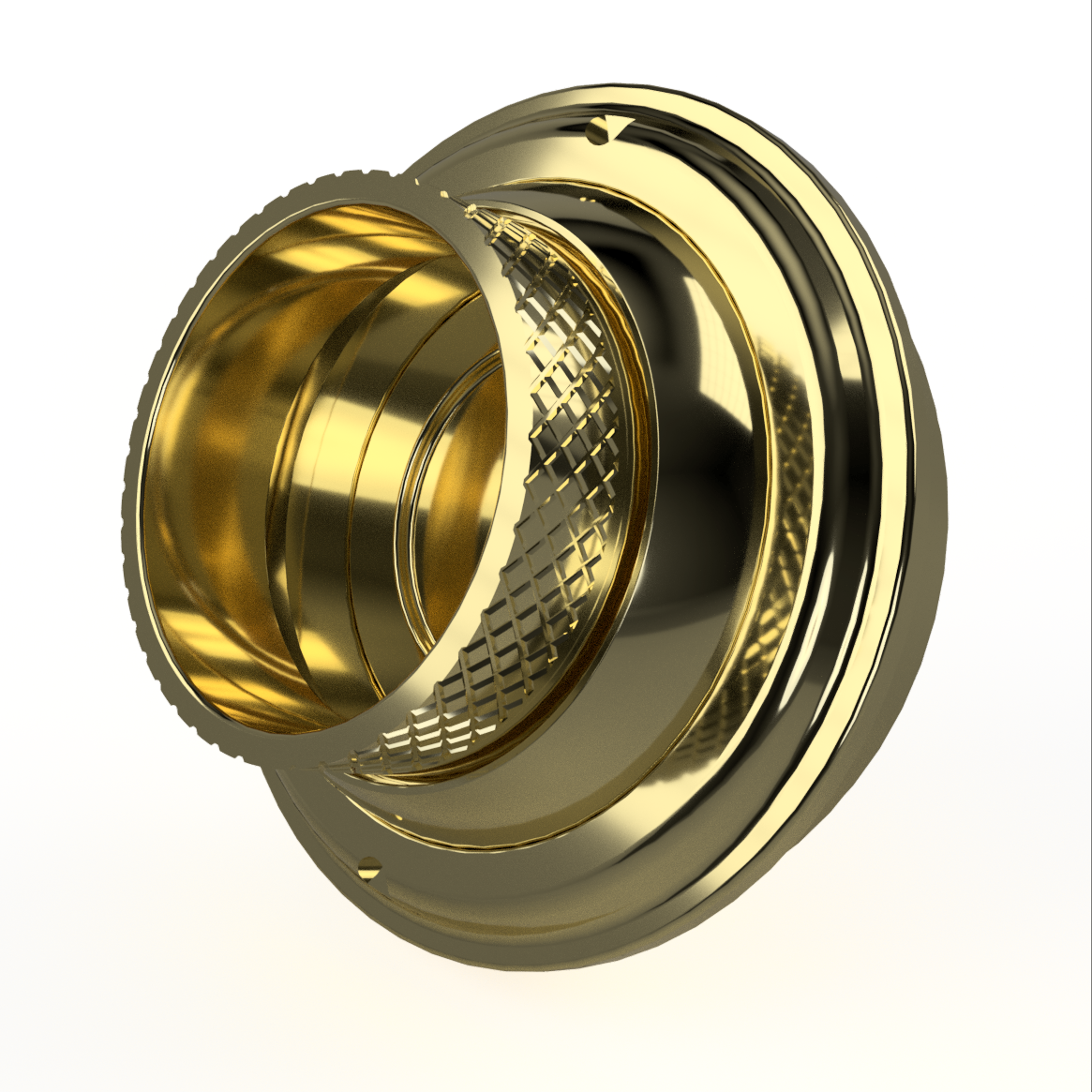

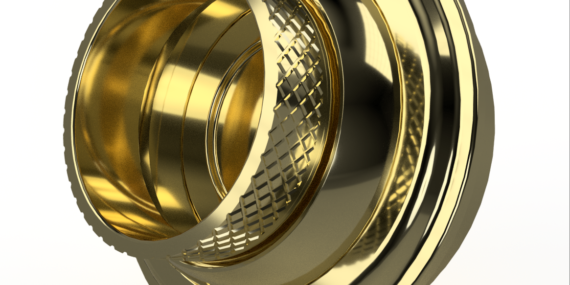

AIR OUTLET

PN 75-119-05 AIR OUTLET – ALUMINIUM ANTICORODAL 6060 Gold Plated Polished

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 51 mm Hole, Panel Mounting Thickness 1 to 2,5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.

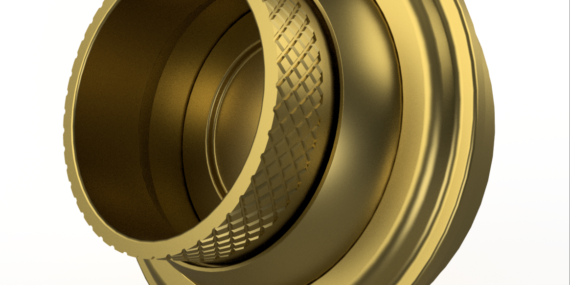

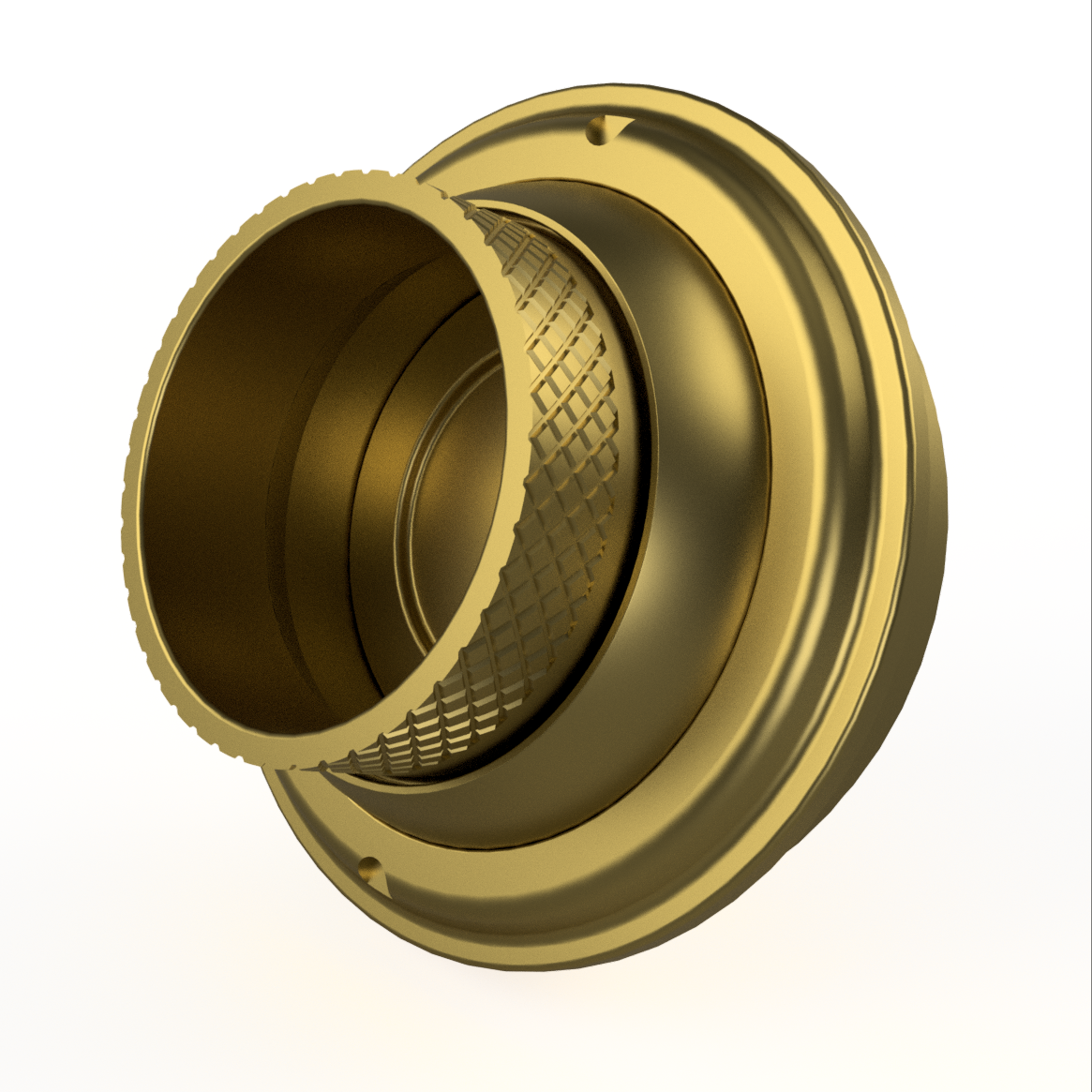

AIR OUTLET

PN 75-119-06 AIR OUTLET – ALUMINIUM ANTICORODAL 6060 Gold Plated Satin

OPERATING TEMPERATURE RANGE: -54°C to +100°C

MOUNTING INTERFACE: 51 mm Hole, Panel Mounting Thickness 1 to 2,5 mm

NOZZLE ORIENTATION: 30° CW to open, 40° Spherical Adj.
